VORTEX Carbon rim brake wheelset | Benchmark series 40mm or 60mm

Regular price €1.299,00
/

Size
Cassette
Graphics
Only 10 items in stock!



A great first upgrade wheel set designed with significant feedback from riders to ensure that stability is built right into the heart of the product.

  • B4 are 40mm deep, 26mm external, 17mm internal
  • B6 are 60mm deep, 28mm external, 17mm internal
  • T700 rim construction laced with steel aerodynamic spokes
  • Active Balance system to ensure the highest levels of stability
  • Optimised aluminium hubs with Enduro ABEC5 bearings
  • Weight from 1390g to 1520g

TECHNOLOGIES

RIM

The rims have been optimised with a number of key technologies to ensure they are both light and aerodynamic.  The rims are constructed from T700 carbon fibre and are hooked in design to ensure the maximum compatibility with all tyres.

The rims have the following technologies to promote stiffness and stability:

AFR - Asymmetric Fat Rim

For rim brakes the rear wheel has angled spoke holes and an asymmetric rim enable us to reduce the tension in the non-drive side spokes.  This reduces the difference between the angle of the drive and non-drive side spokes.  This is particularly important given the trend towards wider cassettes in the modern group sets.

OSH - Offset Spoke Holes

Spoke holes are angled to match the spoke pattern and the spoke angle, so that the nipple is in perfect contact with the inner wall of the rim.  This enables the spoke tension to evenly distributed to the rim and no force placed on sidewall of the the spoke hole.  The spoke will no longer bend where it meets the rim.  All these factors combine to more efficiently transmit power from the hub to the rim.

ICE - Invisible Carbon Eyes
Additional material around the spoke holes on the interior of the rim provides additional strength where it is needed.  This contributes to a lower overall rim weight without compromising the strength.  The spoke holes are then chamfered to further improve the wheel durability.

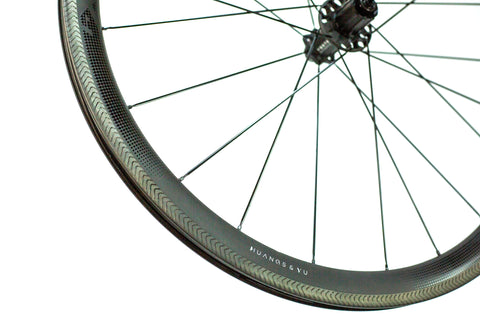

ASB - Arrow-speed Braking Surface (Rim Brake version)

Laser-cut drainage channels, a special material for the brake track surface and a custom brake pad compound combine to deliver predictable braking performance in all conditions.  The arrow-shaped  channels provide unparalleled braking and drainage in wet conditions.

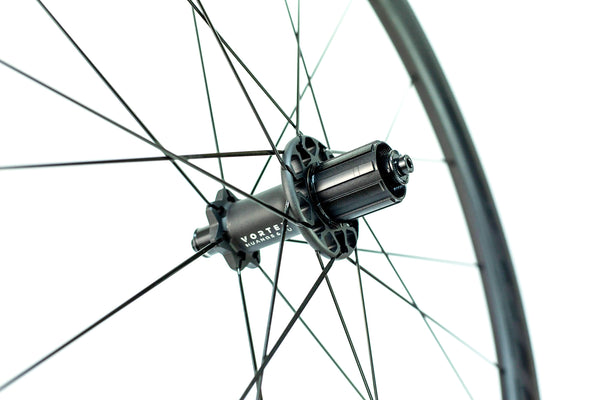

HUBS

The hubs are a machined from Aluminium and are laced with 2x1 pattern (apart from the front rim brake wheel which is a radial construction).

FLS - Fixed Lacing System

Shaped spoke holes in the hub flange prevent the straight-pull spokes from spinning.  This eliminates the resulting changes in spoke tension.

WSB - Wheel Specific Bearings
Bicycle wheel bearings are subject to different conditions than normal bearing usage.  Lower speeds, exposed to the elements and subject to radial and impact loads the bearing needs to be optimised.  We use Enduro ABEC5 bearings which have seals specifically designed for bicycle wheels.

ABS - Active Balance System

ABS is a combination of a proprietary tubeless valve matched with a counterweight on the opposite side of the rim.  The dynamic balance of this system creates a wheel that maintains a stable centre during high speed rotation.  The rider will notice a silky smooth ride and greater confidence when travelling at higher speeds.

TLS - Tubeless Ready System

These wheels are tubeless ready and come supplied with the rim tape pre-fitted.



SPECIFICATIONS

B4 Rim Brake Clincher (Tubeless Ready)

Weight: 1390g(±5%)

Spokes: 3.0mm×1.1mm aero steel spokes, front 14 radial, rear 21 two-cross (2:1)

Hub: Aluminium hub body, ENDURO ABEC5 bearing

Cassette: Campagnolo 10/11/12s, Shimano 10/11s, SRAM XDR

Rim: T700 high TG carbon fibre, asymmetric rear wheel, Arrow-speed braking track

Dimensions: 40mm rim depth, 17mm internal, 26mm external

Maximum Pressure: Tubed 120psi, Tubeless 100psi

Maximum weight limit: 120kg

Included: Brake pads, QR, Instruction Manual, Rim Tape installed


B6 Rim Brake Clincher (Tubeless Ready)

Weight: 1520g(±5%)

Spokes: 3.0mm×1.1mm aero steel spokes, front 14 radial, rear 21 two-cross (2:1)

Hub: Aluminium hub body, ENDURO ABEC5 bearing

Cassette: Campagnolo 10/11/12s, Shimano 10/11s, SRAM XDR

Rim: T700 high TG carbon fibre, asymmetric rear wheel, Arrow-speed braking track

Dimensions: 60mm rim depth, 17mm internal, 28mm external

Maximum Pressure: Tubed 120psi, Tubeless 100psi

Maximum weight limit: 120kg

Included: Brake pads, QR, Instruction Manual, Rim Tape installed



CUSTOM ROAD INCIDENT PROTECTION PROGRAM

Accidents happen so we want you to reassured if something unforeseen happens.  Our incident protection program allows you to replace your wheels at a discounted price.
