The perfect wheel set for the racer who wants choice, performance and reliability.
- T800 rim construction with no spoke holes which removes the need for rim tape
- Tubular option for the lightest race wheel set
- Optimised aluminium hubs with the ultimate in bearings
TECHNOLOGIES
RIM
The rims have been optimised with a number of key technologies to ensure they are both light and aerodynamic. The rims are constructed from T800 carbon fibre which creates a lighter and stiffer rim than the benchmark series, the stand out feature is no spoke holes which removes the need for rim tape and eliminates a few more grams. They are hooked in design to ensure the maximum compatibility with all tyres.
The rims have these the the following technologies to promote stiffness and stability:
OSH - Offset Spoke Holes
Spoke holes are angled to match the spoke pattern and the spoke angle, so that the nipple is in perfect contact with the inner wall of the rim. This enables the spoke tension to evenly distributed to the rim and no force placed on sidewall of the the spoke hole. The spoke will no longer bend where it meets the rim. All these factors combine to more efficiently transmit power from the hub to the rim.
ICE - Invisible Carbon Eyes
Additional material around the spoke holes on the interior of the rim provides additional strength where it is needed. This contributes to a lower overall rim weight without compromising the strength. The spoke holes are then chamfered to further improve the wheel durability.
HUBS
The hubs are a machined from Aluminium and are laced with 2x1 pattern (apart from the front rim brake wheel which is a radial construction).
FLS - Fixed Lacing System
Shaped spoke holes in the hub flange prevent the straight-pull spokes from spinning. This eliminates the resulting changes in spoke tension.
WCB - Wheel-Specific Ceramic Bearings
Bicycle wheel bearings are subject to different conditions than normal bearing usage. Lower speeds, exposed to the elements and subject to radial and impact loads the bearing needs to be optimised.
ABS - Active Balance System
ABS is a combination of a proprietary tubeless valve matched with a counterweight on the opposite side of the rim. The dynamic balance of this system creates a wheel that maintains a stable centre during high speed rotation. The rider will notice a silky smooth ride and greater confidence when travelling at higher speeds.

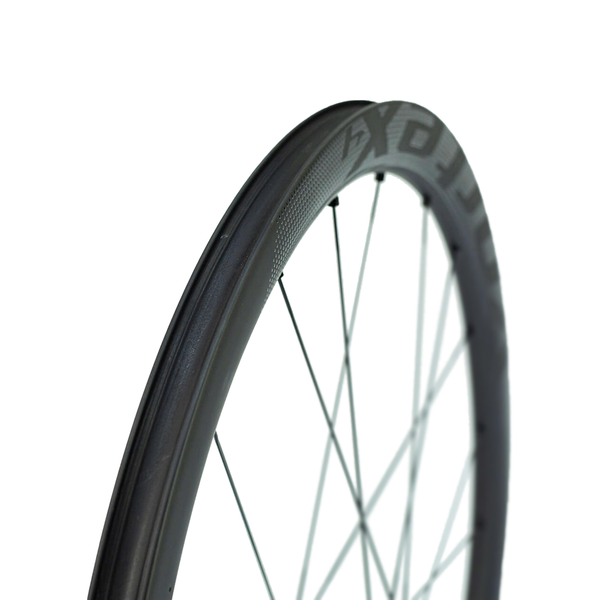

TLS - Tubeless Ready System
By optimising the manufacturing process we have been able to eliminate the spoke holes in the rim bed. This allows for a much simpler tubeless setup and the removal of rim tape.
SPECIFICATIONS
C4 Disc Brake Clincher (Tubeless Ready)
Weight: 1430g(±5%)
Spokes: 3.0mm×1.1mm aero steel spokes, front and rear 21 two-cross (2:1)
Hub: Aluminium hub body, Centerlock
Cassette: Campagnolo 10/11/12s, Shimano 10/11s, SRAM XDR
Rim: T800 high impact carbon fibre
Dimensions: 40mm rim depth, 19mm internal, 26mm external
Maximum Pressure: Tubed 120psi, Tubeless 100psi
Maximum weight limit: 120kg
Included: Proprietary valve stem, Instruction Manual, Wheel bag
C4 Disc Brake Tubular
Weight: 1310g(±5%)
Spokes: 3.0mm×1.1mm aero steel spokes, front and rear 21 two-cross (2:1)
Hub: Aluminium hub body, Centerlock
Cassette: Campagnolo 10/11/12s, Shimano 10/11s, SRAM XDR
Rim: T800 high impact carbon fibre
Dimensions: 40mm rim depth, 26mm external
Maximum weight limit: 120kg
Included: Proprietary valve stem, Instruction Manual, Wheel bag
