VORTEX Carbon rim brake wheelset | No Compromise series 40mm

Regular price €2.599,00
/

Tyre
Cassette
Graphics
Only 10 items in stock!

The ultimate lightweight and stiff wheel for the rider who doesn’t want to compromise.  A total system approach to the design has produced a wheel which is 1060g in weight whilst retaining balance and stiffness.

  • T800 rim construction with no spoke holes which removes the need for rim tape
  • RCS - the 2nd generation replaceable carbon spokes which are stronger and lighter
  • Carbon and aluminium hubs with optimised geometry coupled with the ultimate in bearings

    TECHNOLOGIES

    RIM

    The rims have been optimised with a number of key technologies to ensure they are both light and aerodynamic.  The rims are constructed from T800 carbon fibre which creates a lighter and stiffer rim. They are hooked in design to ensure the maximum compatibility with all tyres.

    AFR - Asymmetric Fat Rim

    For rim brakes the rear wheel has angled spoke holes and an asymmetric rim enable us to reduce the tension in the non-drive side spokes.  This reduces the difference between the angle of the drive and non-drive side spokes.

    OSH - Offset Spoke Holes

    Spoke holes are angled to match the spoke pattern, so that the nipple is in perfect contact with the inner wall of the rim.  This enables the spoke tension to evenly distributed to the rim and no force placed on sidewall of the the spoke hole.

    ICE - Invisible Carbon Eyes
    Additional material around the spoke holes on the interior of the rim provides additional strength where it is needed which contributes to a lower overall rim weight.

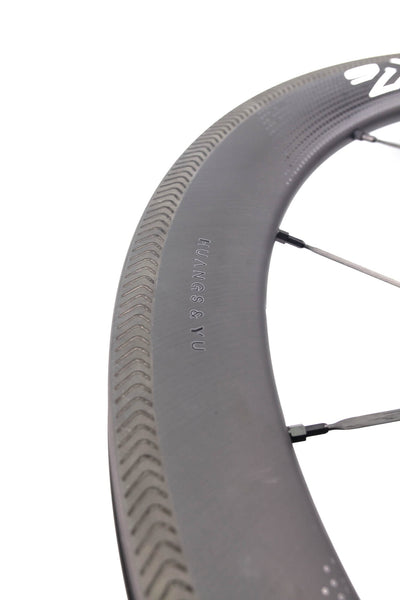

    ASB - Arrow-speed Braking Surface

    Laser-cut drainage channels, a special material for the brake track surface and a custom brake pad compound combine to deliver predictable braking performance in all conditions.

    HUBS

    The hubs are constructed from Carbon Fibre and Aluminium and are laced with 2x1 pattern for the rear and radial for the front.

    OSF - Over Sized Flange
    Unique to this wheel series the OSF allows the transmission of the drive force through the spokes to be made more efficient by increasing the flange height which optimises the spoke angle.  By using finite element analysis software the flanges have then been precision machined to ensure no additional material exists.

    WCB - Wheel-Specific Ceramic Bearings
    Bicycle wheel bearings are subject to different conditions than normal bearing usage.  Lower speeds, exposed to the elements and subject to radial and impact loads the bearing needs to be optimised.

    RCS - Replaceable Carbon Spokes

    By incorporating aluminium spoke heads into the design, Vortex has been able to take full advantage of the tensile strength of UD carbon fibre.  Using a hard-die single-shot moulding process, the carbon fibres literally start at the spoke base and journey over the head and back to base.  There are over 96,000 carbon monofilaments in each spoke.

    Each spoke is tested (before being hand.  At 5mm x 1.2mm and with an elliptical cross-section to deliver better aerodynamics, everything has been done to prevent them from rotating or changing tension, providing more consistency over a long period.  Overall these spokes are 25% lighter than steel spokes (e.g. Sapim CX ray) whilst being 40% stiffer and at least 40% stronger.  Being replaceable, these spokes offer the benefits of carbon fibre without the after-sales and maintenance problems of ordinary carbon fibre spokes.

    ABS - Active Balance System

    ABS is a combination of a proprietary tubeless valve matched with a counterweight on the opposite side of the rim.  The dynamic balance of this system creates a wheel the rider will notice.

    TLS - Tubeless Ready System

    By optimising the manufacturing process we have been able to eliminate the spoke holes in the rim bed.  This allows for a much simpler tubeless setup and the removal of rim tape.

    SPECIFICATIONS

    N4 Rim Brake Clincher (Tubeless Ready)

    Weight: 1305g(±5%)

    Spokes: 2nd Gen Replaceable Carbon Spokes, front 14 radial, rear 21 two-cross (2:1)

    Hub: Carbon Fibre and Aluminium hub

    Cassette: Campagnolo 10/11/12s, Shimano 10/11s, SRAM XDR

    Rim: T800 high TG carbon fibre, asymmetric rear wheel, Arrow-speed braking track

    Dimensions: 40mm rim depth, 17mm internal, 26mm external

    Maximum Pressure: Tubed 120psi, Tubeless 100psi

    Maximum weight limit: 120kg

    Included: Brake pads, QR, Instruction Manual, Wheel bag

    N4 Rim Brake Tubular

    Weight: 1090g(±5%)

    Spokes: 2nd Gen Replaceable Carbon Spokes, front 14 radial, rear 21 two-cross (2:1)

    Hub: Carbon Fibre and Aluminium hub

    Cassette: Campagnolo 10/11/12s, Shimano 10/11s, SRAM XDR

    Rim: T800 high TG carbon fibre, asymmetric rear wheel, Arrow-speed braking track

    Dimensions: 40mm rim depth, 26mm external

    Maximum weight limit: 120kg

    Included: Brake pads, QR, Instruction Manual, Wheel bag
